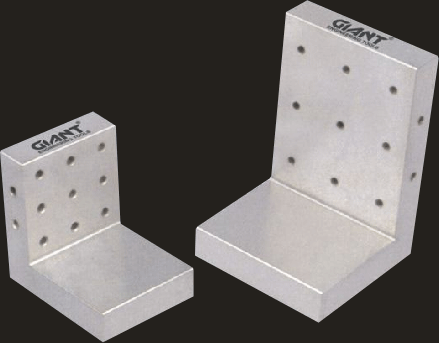

Precision ground steel angle plates

These angle olates are invaluable for accurate work in tool room. Right      angle machining & grinding.
Made from single piece high quality alloy steel.
Haedness -60 + 2HRc.
Unique design to hold small cylindrical parts also.
Proovided with 24 tapped holes for Clamping works pieces
Squareness. Flatness & Parallelism of all working faces within 5 microns

Sr.
code
Size in
Size mm
Thread
Tapped
Net Weight
No
No
Inches
L x W x H
Inches
Holes mm
Kgs.
1
AP 75
3" x 3" x 3"
75 x 75 x 75
1/4"
m 6 x 1
1
2
AP 10
4" x 4" x 4"
100 x 100 x 100
5/16"
m 8 x 1.25
2.75
3
AP 150
6" x 6" x 6"
150 x 150 x 150
5/16"
m 8 x 1.25
7.5
