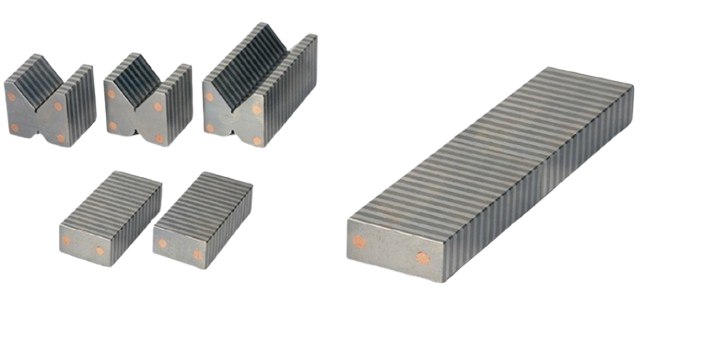

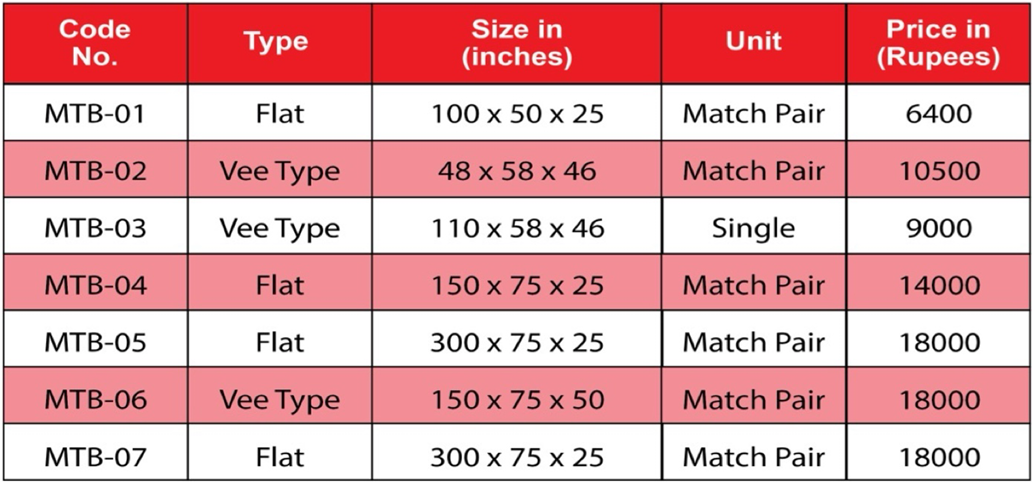

MAGANETIC TRANSFER BLOCKS
- Used as an accessory for maganetic chuck to clamp thin and odd shape jobs.
- Simplest method to extending the maganetic flux of maganetic chuck with parallel poles to support the ob.
- Maximum flux transformation when placed parallel to poles line.
- 90 v provided for round job.
- Perfectly ground within 5 microns & supplied in matches pair.

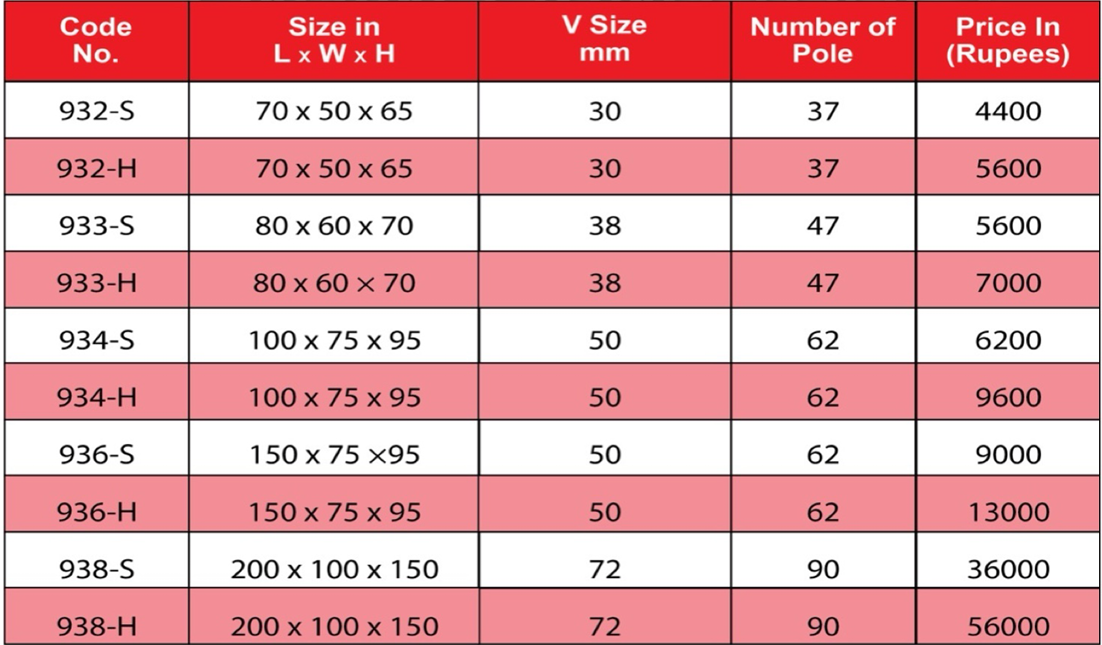

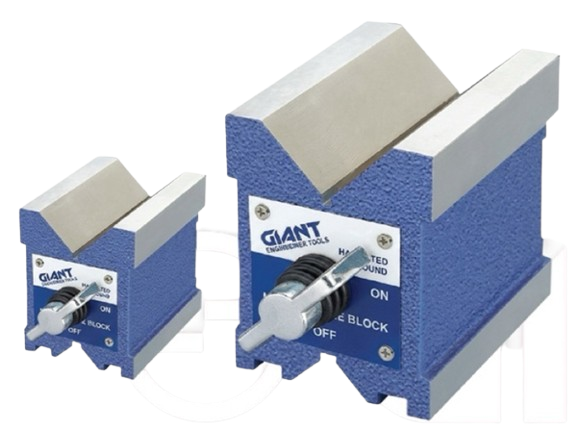

MAGNETIC VEE BLOCKS
"HARDENED & GROUND" (Giant Brand )
"Giant" Brand Uniform and Strong Magnetic pull to all the surface, Top Bottom & V Faces.
Accurate for Flatness Squareness & Parallelism within 0.005 upto 150 & 0.010mm for 200 L.
Hardness above 55-60 HRC with Fully Hardened.
Supplied in matched pair.
Easy "ON-OFF" Knob.

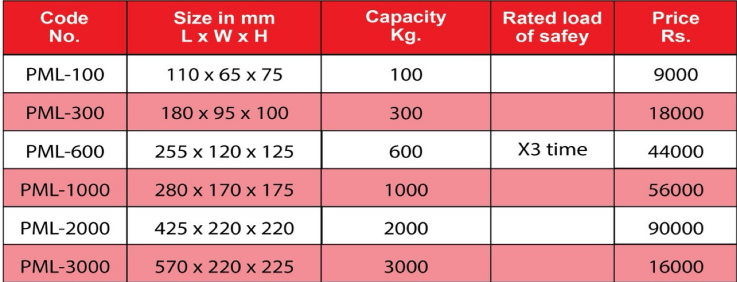

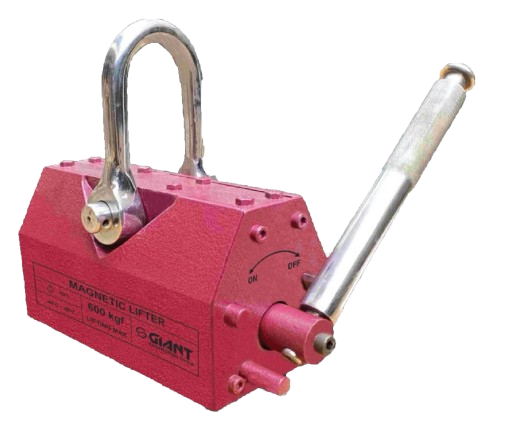

Permanent Magnetic Lifter
Apply this magnetic lifter to move steel plate , block or round steel, and iron material in your factory.
Tested to hold 3 times, the rated load of miximum safety.
It is perfact for loading or unloading most workpiece including press moulds, plastic molds, machine parts, ext...

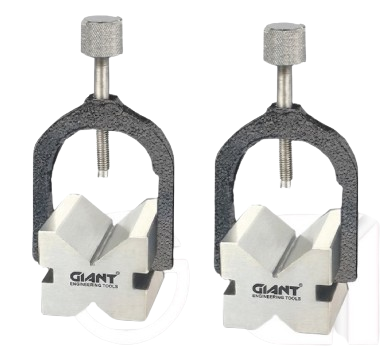

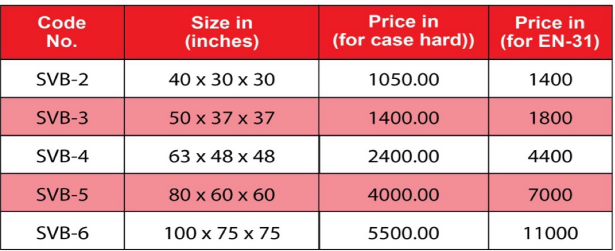

STEEL VEE BLOCK & CLAMP
Steel Vee Blocks are made from special tool steel hardened & precision ground to extreme accuracies
The Vee Block are Central. Parallel and square with the ends & sides
Supplied in matched pairs with 2 clamps
Squareness, Parallelism 0.005mm

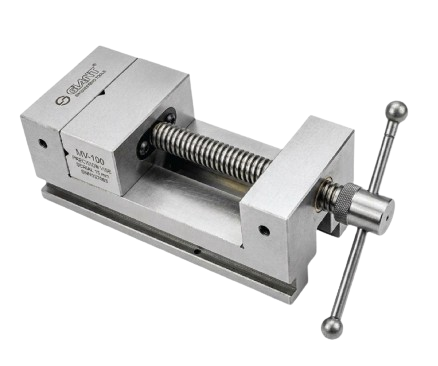

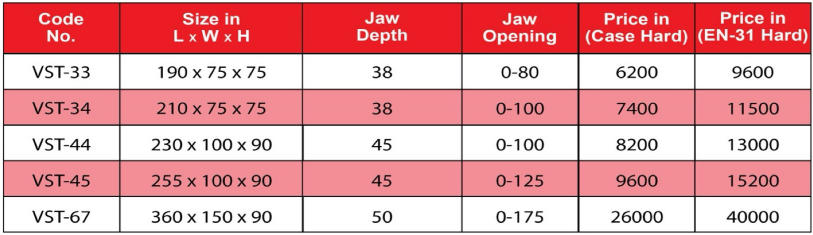

PRECISION TOOLMAKER STEEL VICE SCREW TYPE
Manufactured from Selected Tool Steel Hardened 55-60 HRc.
Accuracy for Squareness, Flatness & Parallelism within 0.010mm
Wear Plate at Bottom to prevent lifting of jaw.
Hardened clamping screw with square thread & gun metal nut.
Tenon at bottom to allow easy alignment with machine bed.

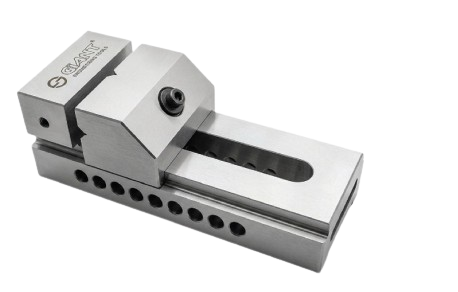

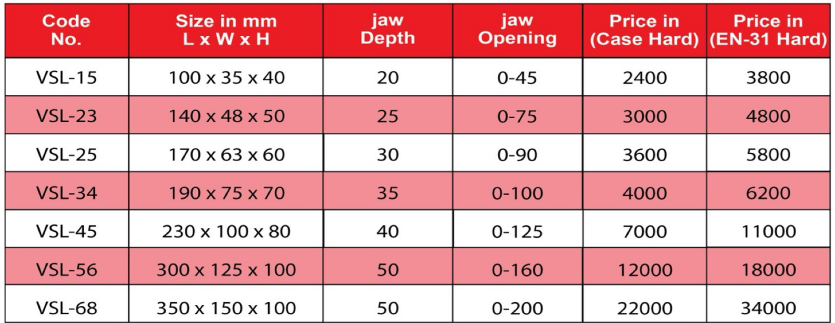

PRECISION TOOLMAKER STEEL VICE SCREW LESS
Manufactured from Selected Tool Steel Hardened 55-60 HRc.
Accuracy for Squareness, Flatness & Parallelism within 0.005mm.
The moving jaw of vice is slightly narrower than the base to enable vice to be used on its sides.These model are specially designed to provide maximum.Holding power and highly repeatable positioning due to their forward and downward clamping action.

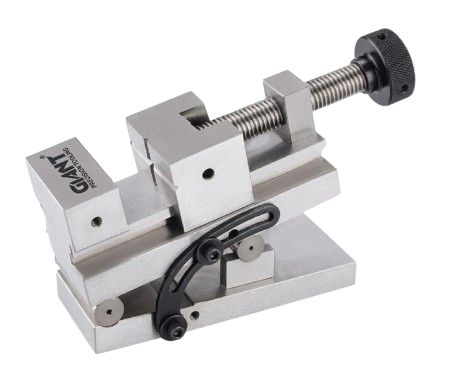

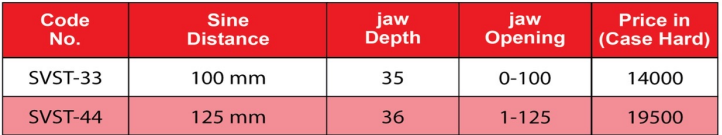

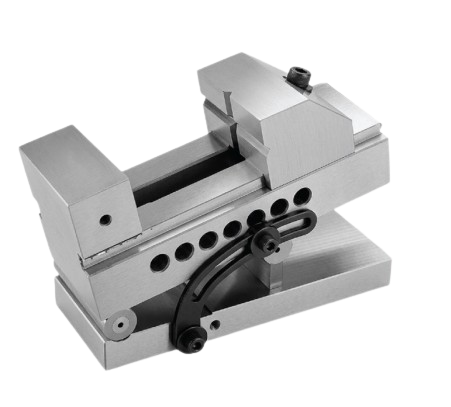

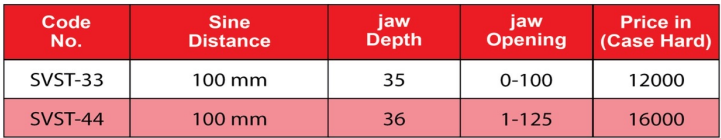

PRECISION SINE VISE (Screw Type)
Manufactured from Selected Tool Steel Hardened 55-60 HRc.
Used for Precision Measurement. Setting of angles.
Right angle grinding & light machining.
Accuracy for Squareness, Flatness & Parallelism is 0.005mm.

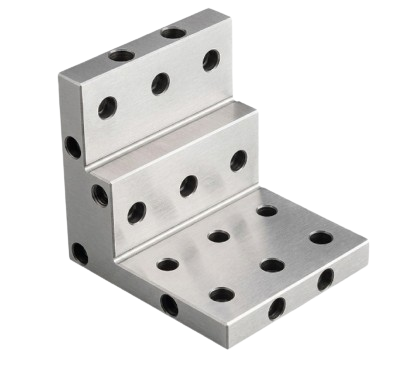

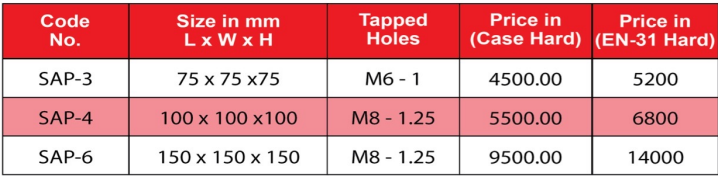

PRECISION STEP ANGLE PLATES
These angle olates are invaluable for accurate work in tool room.
Right angle machining & grinding.
Made from single piece high quality alloy steel.
Hardness -60 +2HRc
Unique design to hold small cylindrical parts also.
Provided with 24 tapped holes for clamping woks pieces.
Squareness, Flatness & Parallelism of all working faces within 5 microns.

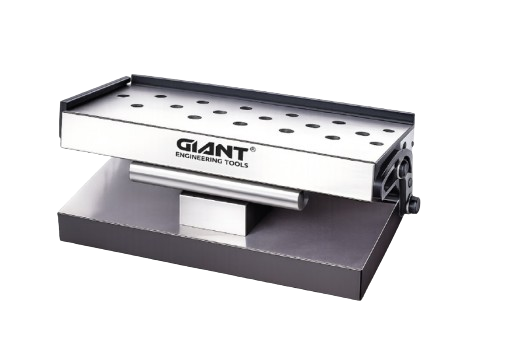

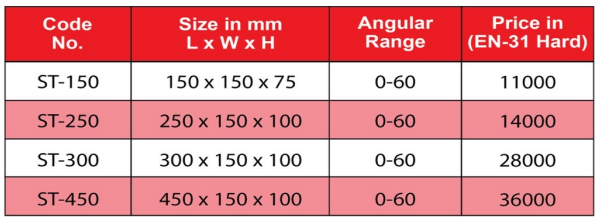

SINE TABLES
Used for Precision measurement, setting of angles utilizing slip gauge.
Accuracy for Squareness, Parallelism & Flatness is 0.005 mm upto 200L & 0.010 upto 450L.
Angle can be set within ±5 seconds.
Centre distance between rollers is within 0.005mm.
Made from high quality Alloy Steel.
Hardness 60 + 2 HRc & Tempered.
Firm hinged clamp to reduce possibility of distortion
6mm, 8mm tapped holes for job clamping.

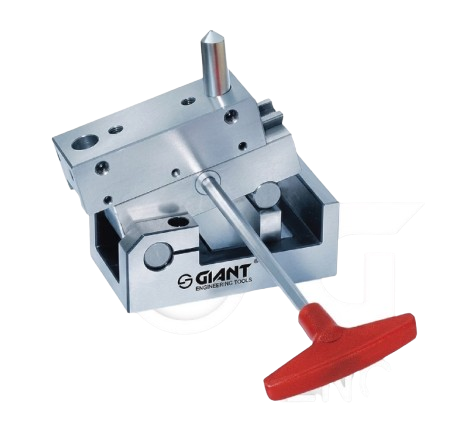

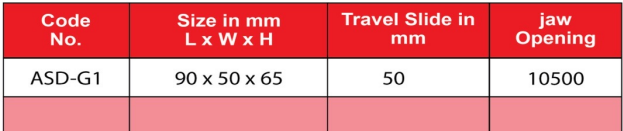

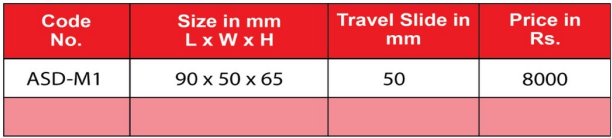

ANGLE SINE DRESSER
(With Gear Driven)
Angle Sine Dresser, release screws on the both side and free to adjust any needed angle.
Suitable for vertical or horizontal angles,
Sine angle 0-60 degree and both are within 0.005mm accuracy
Double axis accuracy is ± 0.005 mm.
Provide gear driven and it is designed for better prevention for the beginner.
PRECISION SINE VISE (Screw Less)
Manufactured from Selected Tool Steel Hardened 55-60 HRc.
Used for Precision Measurement. Setting of angles.
Right angle grinding & light machining.
Accuracy for Squareness, Flatness & Parallelism is 0.005mm.

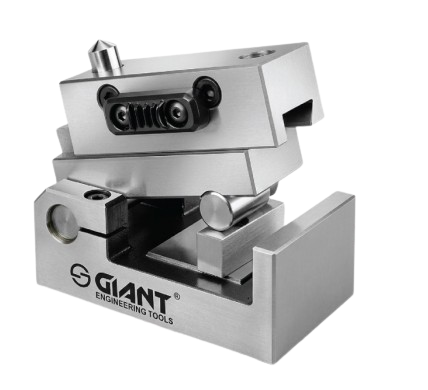

ANGLE SINE DRESSER
Angle Sine Dresser, release screws on the both
side and free to adjust any needed angle.
Suitable for vertical or horizontal angles, Sine angle 0-60 degree and both are within 0.005mm accuracy
Double axis accuracy is $\pm$ 0.005 mm.Provide gear driven and it is designed for better prevention for the beginner.
